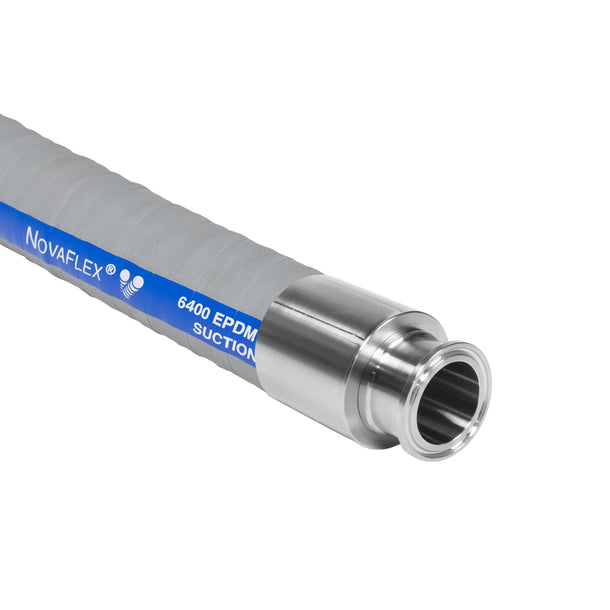

The Novaflex 6400 EPDM Brewery Hose Assembly is designed for brew applications where a durable, high-temperature rated hose is needed.
The EPDM liner on this hose offers a taste and odor neutral aspect, as well as the ability to withstand heat over time better than the Chlorobutyl counterparts.
Each assembly comes with hydraulically crimped Sanitary TC fittings and ferrules and is custom-made to order. Simply select the inside diameter size of the hose, choose the overall length in feet, and add it to the cart - we take care of the rest.
Specifications:
- Tube: FDA white EPDM (non-oily applications)
- Reinforcement: Multiple plies of polyester tire cord w/ wire helix
- Cover: Gray EPDM
-
Temperature Range: -40°F (-40°C) to +225°F (+107°C)
(not for continuous steam service)
| Part Number | Inside Diameter | Outside Diameter | WP PSI | Bend Radius |
| 6400-01000 | 1" | 1.54" | 150 | 5" |
| 6400-01500 | 1.5" | 2.05" | 150 | 6" |
