Build Your Custom Beer Transfer Hose below.

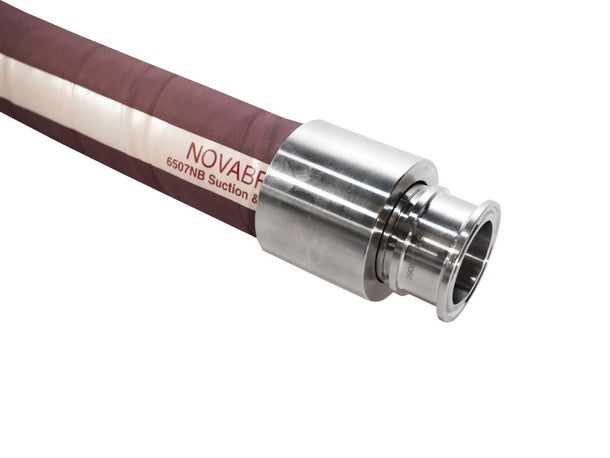

Novaflex Novabrew Beer Transfer Hose Assembly with Crimped Fittings
Novaflex Novabrew 6507 Beer Transfer Hose AssemblyNovaflex Novabrew 6507 Beer Transfer Hose Assembly
$195.63

Both the 1" and 1-1/2" Beer Transfer Hose Assemblies come with 1.5" TC fittings

Add Protective Bumpers to your assembly

SHOP PROTECTIVE BUMPERS HERE

Crimped vs Banded Fittings

We give you the option of having your Sanitary Flange Fittings either crimped or band clamped onto your hose assembly. Crimped fittings are hydraulically pressed on for a permanent fit onto your hose and banded fittings are band clamped on. The bands can be cut and the fittings reused if needed for quick repairs. The band clamped fittings are more budget friendly than the crimped on fittings. We recommend crimped fittings for a contamination-free connection, but we also have a fair share of customers that prefer banded on fittings as they have not had any issues with this connection method.

Hose Assembly Details

Novaflex Novabrew 6507 designed for beer transfer applications. This brewers hose is built to last and perform to the demands of your brewery.

Each hose is custom made to meet your needs. The fittings can be either hydraulically crimped or banded on. Simply choose the inside diameter size of your hose, the overall length in feet, and how you would like for your fittings to be attached - we take care of the rest.

Applications

A state of the art designed hose based on the specific requirements of the today’s modern breweries. NOVABREW has a rugged but flexible construction with a supersmooth white tube that is microbe resistant along with a dark burgundy cover that resists dirt scuffs and is easily cleaned. NOVABREW is built on stainless steel mandrels for cleanliness and Meets FDA, USDA and 3-A (certificate #1376) Standards

Specifications

  • Tube: White Chlorobutyl (non oily applications)
  • Reinforcement: Multiple plies of polyester tire cord dual monofilament helix rods
  • Cover: Dark Burgundy EPDM
  • Temperature: -40° to 240°F (can be open end steam cleaned CIP to 248°F)
  • Pressure Rating: 250 PSI

      Brew hose assemblies built to meet the needs of your brewery.

      BreweryHoseSupply.com is a listed supplier and member of the Brewers Association.

      See all our most popular Beer Transfer Hoses below

      NOVAFLEX
      NOVABREW
      6507NB HOSE

      Starts at $12.12/ft

      BUILD ASSEMBLY

      BUY PER FOOT

      Novaflex Novabrew 6507 Brewers Hose Assembly

      What makes it good?

      • Abrasion resistant cover

      • Chlorobutyl lining (non-oily applications)

      CONTINENTAL
      DRINKLINE
      HOSE

      Starts at $12.41/ft

      BUILD ASSEMBLY

      BUY PER FOOT

      Continental Drinkline Brewers Hose

      Why its the best?

      • White Chlorobutyl lining

      • Abrasion resistant EPDM cover

      • Light weight and easy to handle

      • Reinforced with 4 plies

      NOVAFLEX
      CONNOISSEURS
      6506 HOSE

      Starts at $9.74/ft

      BUILD ASSEMBLY

      BUY PER FOOT

      Novaflex Connoisseurs 6506 Brewers Hose Assembly

      What makes it better?

      • Same as Novabrew but

        with gray cover instead

      • Abrasion resistant cover

      • Chlorobutyl lining (non-oily applications)

      CONTINENTAL
      EXTREMEFLEX
      HOSE

      Starts at $12.68/ft

      BUILD ASSEMBLY

      BUY PER FOOT

      Continental Extremeflex Brewers Hose Assembly

      What makes it better?

      • Lightweight & flexible

      • Chlorobutyl lining (Non-phthalates compound)

      • EZ Clean cover that allows
        water to channel under

      CONTINENTAL
      PURPLE SNAKE
      HOSE

      Starts at $12.45/ft

      BUILD ASSEMBLY

      BUY PER FOOT

      Continental Purple Snake Brewers Hose Assembly

      Why its the best?

      • Taste & Odor Neutral

      • Non-porous, high-performing EPDM lining

      • Consistent taste

      • Cover is resistant to ozone, weather, UV, and abrasion

      BEER TRANSFER
      HOSE &
      ASSEMBLIES

      Novaflex Brewers Beer Transfer Hose and Assemblies

      BEER TRANSFER HOSE & HOSE ASSEMBLIES

      Our beer transfer hose and hose assemblies are built to last and handle the tasks that you will put it through when brewing a batch. The assemblies are custom cut to length and come with sanitary flanges on the ends. When it comes to beer transfer hose, we have you covered.

      Cheers!

      When it comes to shopping for hose, there are far too many choices offered and some are not even related to the beer industry - we solved this issue by only offering products that are relevant to breweries, and are engineered for this exact purpose.

      Look no further - we are your source for beer transfer hose, washdown hose, and other hoses used throughout your brewery.
